Paper industry, cellulose industry, sugar industry, food industry, power plants, chemical industry, petrochemical industry, flue gas desulphurisation, coal upgrading plants, industrial applications, waste water transport, seawater desalination / reverse osmosis

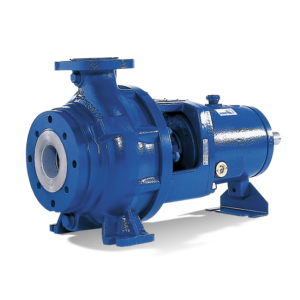

Horizontal radially split volute casing pump in back pull-out design, single-stage, single-entry, available with various impeller types: closed multi-channel impeller, open multi-vane impeller and free-flow impeller. ATEX-compliant version available.
| Ash removal | Bio. treatment / 2.stage |
| Biofuels | Biogas |
| Breweries | Chemical industry |
| Cooling water and condensate | Desalination |
| Drainage | Energy |
| Flood / stormwater holding tanks | Flood control |
| Flue gas desulphurization (FGD) | Flue gas desulphurization plants (FGD) |
| Flue gas desulphurization systems (FGD) | Food and beverages |
| General Processes | Industrial Process |
| Industry engineering | Mech. treatment / 1.stage |
| Mineral Mining | Mining |
| Municipal waste water | Oil /Gas |
| Petrochemical Industry | Pipelines and Tanks |
| Power Stations < 100 MW | Power Stations > 100 MW |
| Process | Rawwater transport |
| Sewage treatment plants | Slurry |
| Special processes | Steel |
| Sugar | Surface drainage |
| Suspended solids treatment | Tank cleaning |
| Waste water | Waste water transport |
| Water | Water treatment |
| Watertransport | Watertreatment |
| Q (50Hz) | 4.0 – 15,000.0 (m³/h) |
| H (50Hz) | 1.0 – 140.0 (m) |
| Type of bearing | Rolling element bearings |
| Casing partition | Radially split |
| Drive frequency | 50 Hz /60 Hz |
| Type of drive | Electric motor |
| Drive voltage | Low voltage, high voltage |
| No. of impeller entries | Single entry |
| Impeller material (EN standard) | CERAMIKPOLYSIC, ERN, NORICHROM, NORICLOR, NORIDUR 1.4593, NORIHARD |
| Type of installation | Long-coupled |
| Type of coupling | Jack shaft / Belt drive, Direct, Gear |
| Type of lubrication | Oil lubrication |
| Max. permissible fluid temperature | 280.0 (°C) |
| Nozzle position | End suction |
| Maximum operating pressure | PN10 |
| Pull-out design | Yes |
| Pump set location | Dry installed |
| Shaft material (EN standard) | C45+N |
| Suction characteristics | Non-priming |
| Type of casing | Volute casing |
| Type of impeller | Free flow impeller, Closed, Radial, Multi-vane impeller, Open |
| Type of connection | Flange |
| Casing material (EN standard) | CERAMIKPOLYSIC, JL1040, NORICLOR, NORICROM, NORIDUR 1.4593, NORIHARD |
| eClass assignment | 36410101, 36410000, 36410100, 36410103 |
| Free passage | 250.0 (mm) |
| Installation position | Horizontal |
| Shaft seal type | Mechanical seal, Gland packing |
| Main applications | Industry and process engineering, Water, Waste water / sewage, Energy, Mining / Dredges |
| Casing material | Special cast material, Cast iron, Duplex steel |
| Maximum discharge-side pressure | 10.0 (bar) |
| Maximum drive rating | 1500.0 (kW) |
| Type of installation | Stationary |
| Maximum speed of rotation | 3500.0 (1/min) |
